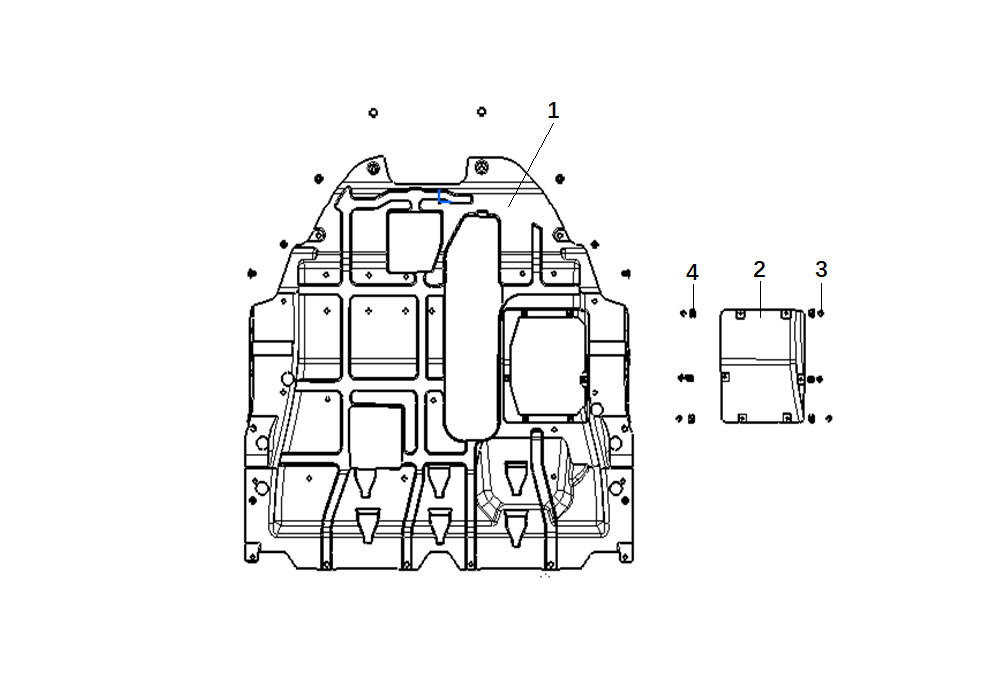

F1F2 - ENGINE LOWER FENDER ASSEMBLY

SX5GREEVA15D65C05GZ25C > Trim system > Underbody trim module > Engine lower fender assembly

Rep.	Designation	Reference	Qte/vehicule
1	Engine lower fender body	F1F2-T5-5504121	1
2	Engine lower mudguard overhaul cover	F1F2-T5-5504122	1
3	Reed clip	F1F2-MX148103	6
4	Cross recessed cup head tapping screw with large head	F1F2-Q2734816F38	6

Price on request

CHF 0.01

Sale Sold out

Number 1 : Engine lower fender body 2 : Engine lower mudguard overhaul cover 3 : Reed clip 4 : Cross recessed cup head tapping screw with large head

Quantity

Manufacturer :

Forthing

Article Nr. :

SKU:F1F2-T5-5504121
