F1F2 - FRONT SUB-FRAME ASSEMBLY MODULE
F1F2 - FRONT SUB-FRAME ASSEMBLY MODULE

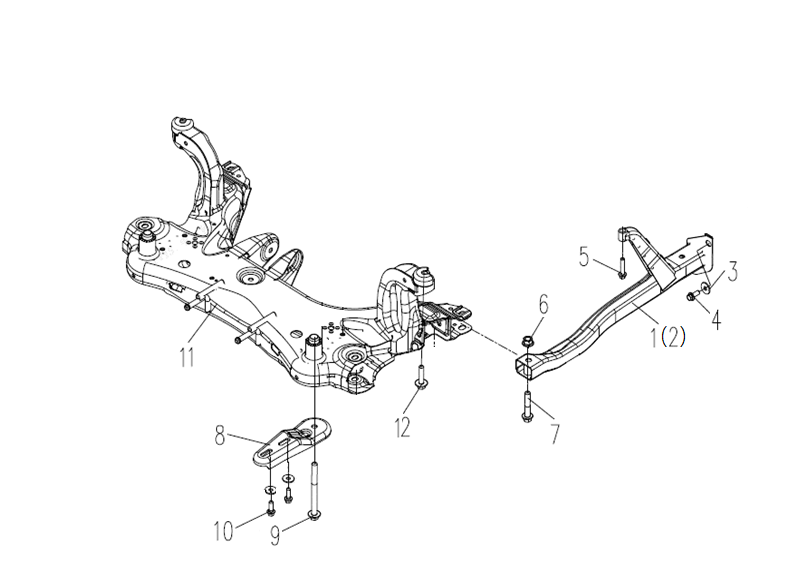

SX5GREEVA15D65C05GZ25C > Suspension and axle > Front sub-frame assembly module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Connecting plate of front auxiliary frame | F1F2-T5EV-2810030 | 2 |
| 2 | Special bolt | F1F2-SX5G-2810972 | 2 |
| 3 | Hexagon flange bolt | F1F2-LQ1851030TF61 | 4 |
| 4 | Special gasket-front subframe connection plate mounting | F1F2-SX5G-2810895 | 4 |
| 5 | Front subframe assembly | F1F2-SX5G-2810050S5 | 1 |
| 6 | Hexagonal flange bolt flat gasket assembly | F1F2-SX5G-2810971A1 | 2 |
| 7 | Hexagon flanged nut | F1F2-SX5G-2810841 | 2 |
| 8 | Hexagon flange bolt | F1F2-SX5G-2810943 | 2 |
| 9 | Hexagon flange bolt | F1F2-Q1841045TF38 | 2 |
| 10 | Hexagon flange bolt | F1F2-Q1841025TF38 | 4 |
Regular price
CHF 53.10
Regular price
Sale price
CHF 53.10
Unit price
/
per
Couldn't load pickup availability
Manufacturer :
Forthing
Article Nr. :
SKU:F1F2-T5EV-2810030
