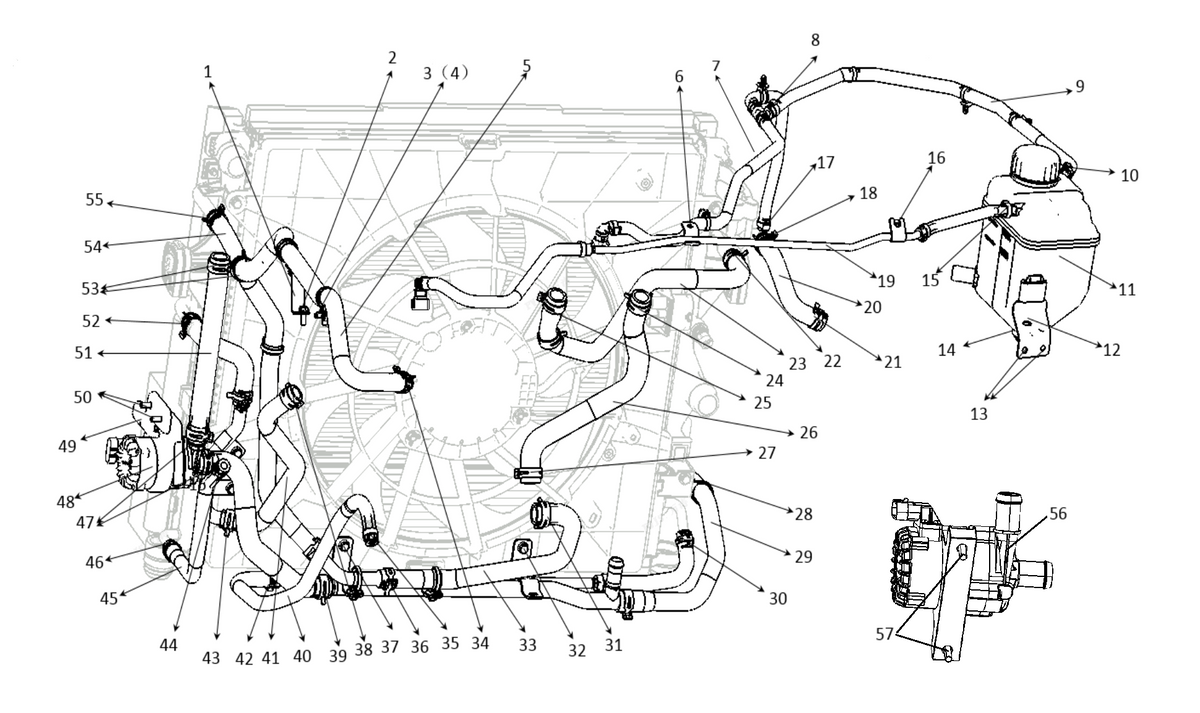

F1N1 - COOLING SYSTEM (MOTOR AND INTERCOOLER CYCLE)
F1N1 - COOLING SYSTEM (MOTOR AND INTERCOOLER CYCLE)
M6A15D65B17SR24 > Engine system > Cooling system (motor and intercooler cycle)
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Water pipe bracket support 4 | F1N1-M6-2127950S | 1 |
| 2 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 3 | Water pipe support 3 | F1N1-M6-2127940S | 1 |
| 4 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 5 | Cooling pipe (three in one - motor controller) | F1N1-M6-2127530S3 | 1 |
| 6 | Hexagon flanged nut | F1N1-Q32006F38 | 1 |
| 7 | Intercooler air outlet pipe assembly | F1N1-M6-1303730S | 1 |
| 8 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 9 | Supercharger air removal assembly | F1N1-M6-1303690S1 | 1 |
| 10 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 11 | Expansion tank assembly | F1N1-SX5G-1311040 | 1 |
| 12 | Expansion tank bracket one | F1N1-M6-1311140S | 1 |
| 13 | All-metal hexagon flanged lock nut | F1N1-Q33006F38 | 1 |
| 14 | Expansion tank gasket | F1N1-B-1311106 | 1 |
| 15 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 16 | All-metal hexagon flanged lock nut | F1N1-Q33006F38 | 2 |
| 17 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 18 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 19 | Drainage pipe assembly (electric motor control) | F1N1-M6-2127660S | 1 |
| 20 | Medium temperature radiator water supply pipe | F1N1-M6-1303060S | 1 |
| 21 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 22 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 23 | Radiator water inlet pipe | F1N1-M6-1303710S | 1 |
| 24 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 25 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 26 | Water pump outlet pipe (intercooler) | F1N1-M6-2127960S | 1 |
| 27 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 28 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 29 | Radiator outlet pipe assembly | F1N1-SX5G-2127040 | 1 |
| 30 | single-ear stepless clamp | F1N1-CM7K-1503011 | 1 |
| 31 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 32 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 33 | Pump inlet pipe assembly | F1N1-M6-1303980S1 | 1 |
| 33 | Pump inlet pipe assembly | F1N1-M6-1303680S1 | 1 |
| 34 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 35 | Single-ear stepless hoop | F1N1-BS3-1700168 | 1 |
| 36 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 2 |
| 37 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 2 |
| 38 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 39 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 40 | Motor outlet oil pipe | F1N1-M6-1712610 | 1 |
| 41 | Radiator water inlet pipe | F1N1-M6-2127620S1 | 1 |
| 42 | single-ear stepless clamp | F1N1-CM7K-1503011 | 1 |
| 43 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 44 | Single-ear stepless hoop | F1N1-BS3-1700168 | 1 |
| 45 | Motor inlet pipe | F1N1-M6-1712620 | 1 |
| 46 | single-ear stepless clamp | F1N1-CM7K-1503011 | 1 |
| 47 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 2 |
| 48 | Electric water pump assembly | F1N1-M6-1307070S1 | 1 |
| 49 | Electric water pump bracket | F1N1-M6-1307060S | 1 |
| 50 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 51 | Pump outlet pipe | F1N1-M6-2127550S1 | 1 |
| 52 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 53 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 54 | Pump inlet pipe | F1N1-M6-2127640S | 1 |
| 54 | Pump inlet pipe | F1N1-M6-2127230S | 1 |
| 55 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 56 | Electric water pump assembly | F1N1-A100035860 | 1 |
| 57 | Hexagon flange bolts-enlarged series | F1N1-Q1860625F38 | 2 |
Regular price
CHF 9.15
Regular price
Sale price
CHF 9.15
Unit price
/
per
Couldn't load pickup availability
Manufacturer :
Forthing
Article Nr. :
SKU:F1N1-M6-2127950S
