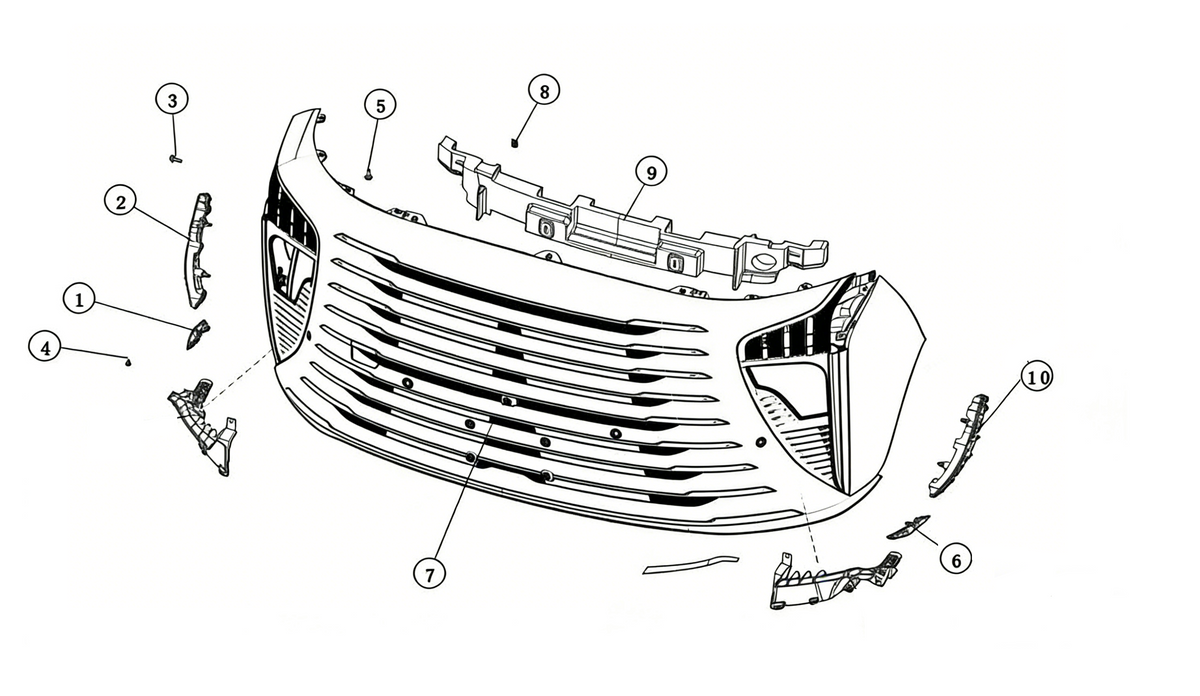

F1N1 - FRONT BUMPER MODULE
F1N1 - FRONT BUMPER MODULE
M6A15D65B17SR24 > Trim system > Front bumper module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left cover plate of daytime running lamp | F1N1-M6-2803410S | 1 |
| 2 | Left front guard bracket | F1N1-M6-2803531S | 1 |
| 3 | Hexagon bolt, spring washer, flat washer assembly | F1N1-LQ146B0625TF38 | 3 |
| 3 | Hexagon bolt, spring washer, flat washer assembly | F1N1-LQ146B0625TF38 | 6 |
| 4 | Cross recessed cup head tapping screw with large head | F1N1-Q2734816F38 | 1 |
| 4 | Cross recessed cup head tapping screw with large head | F1N1-Q2734816F38 | 21 |
| 5 | Hex head bolt and L-flat washer assembly | F1N1-Q140B0630F38L | 10 |
| 6 | Right cover plate of daytime running lamp | F1N1-M6-2803420S | 1 |
| 7 | Front bumper assembly | F1N1-M6-2803320S | 1 |
| 8 | Metal card | F1N1-C20-2804543 | 3 |
| 8 | Metal card | F1N1-C20-2804543 | 1 |
| 9 | Front buffer foam block | F1N1-M6-2803359S | 1 |
| 10 | Support of RF bumper | F1N1-M6-2803532S | 1 |
