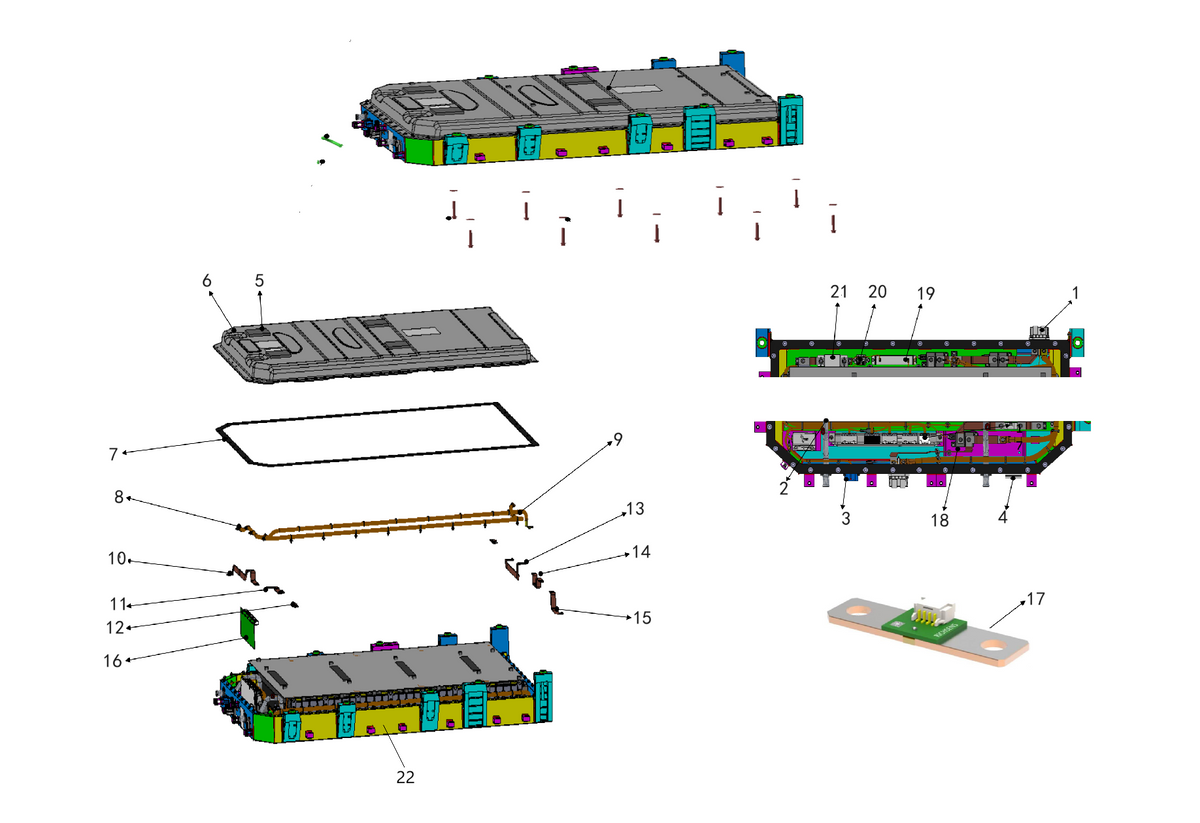

F1N1 - POWER BATTERY PACK ASSEMBLY-HUATING
F1N1 - POWER BATTERY PACK ASSEMBLY-HUATING
M6A15D65B17SR24 > Power Driven system > power battery assembly module > Power battery pack assembly-Huating
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | High voltage socket components | F1N1-0.10.828731 | 2 |
| 2 | HT-SmokeSensor-WL | F1N1-0.10.827796 | 1 |
| 3 | Low voltage socket assembly (with low voltage harness assembly) | F1N1-0.10.829454 | 2 |
| 4 | Metal explosion-proof valve | F1N1-0.01.041067 | 1 |
| 5 | PACK Top Sponge | F1N1-0.02.247085 | 4 |
| 6 | Upper shell | F1N1-0.01.043498 | 1 |
| 7 | Complete package of gaskets | F1N1-0.02.248248 | 1 |
| 8 | Positive Output Wiring Harness | F1N1-0.10.829455 | 1 |
| 9 | Fast charging cathode harness | F1N1-0.10.829456 | 1 |
| 10 | Copper bar, soft connection 1 | F1N1-0.01.043507 | 1 |
| 11 | Copper bar, soft connection 2 | F1N1-0.01.043508 | 1 |
| 12 | Copper bar, flexible connection 3 | F1N1-0.01.043509 | 2 |
| 13 | Copper Bar, Flexible Connector 4 | F1N1-0.01.043510 | 1 |
| 14 | Copper bar，soft connection 5 | F1N1-0.01.043511 | 1 |
| 15 | Copper Bar, Soft Connection 6 | F1N1-0.01.043512 | 1 |
| 16 | Liuzhou Motor M6 Mainboard | F1N1-0.11.590047 | 1 |
| 17 | Splitter | F1N1-0.03.453103 | 1 |
| 18 | Main circuit contactor | F1N1-0.03.453473 | 3 |
| 19 | Precharge resistance | F1N1-0.03.454382 | 1 |
| 20 | Pre charging/heating relay | F1N1-0.03.452686 | 1 |
| 21 | Main fuse protector | F1N1-0.03.456566 | 1 |
| 22 | Liuqi M6 Lower Shell Assembly | F1N1-0.10.829439 | 1 |
