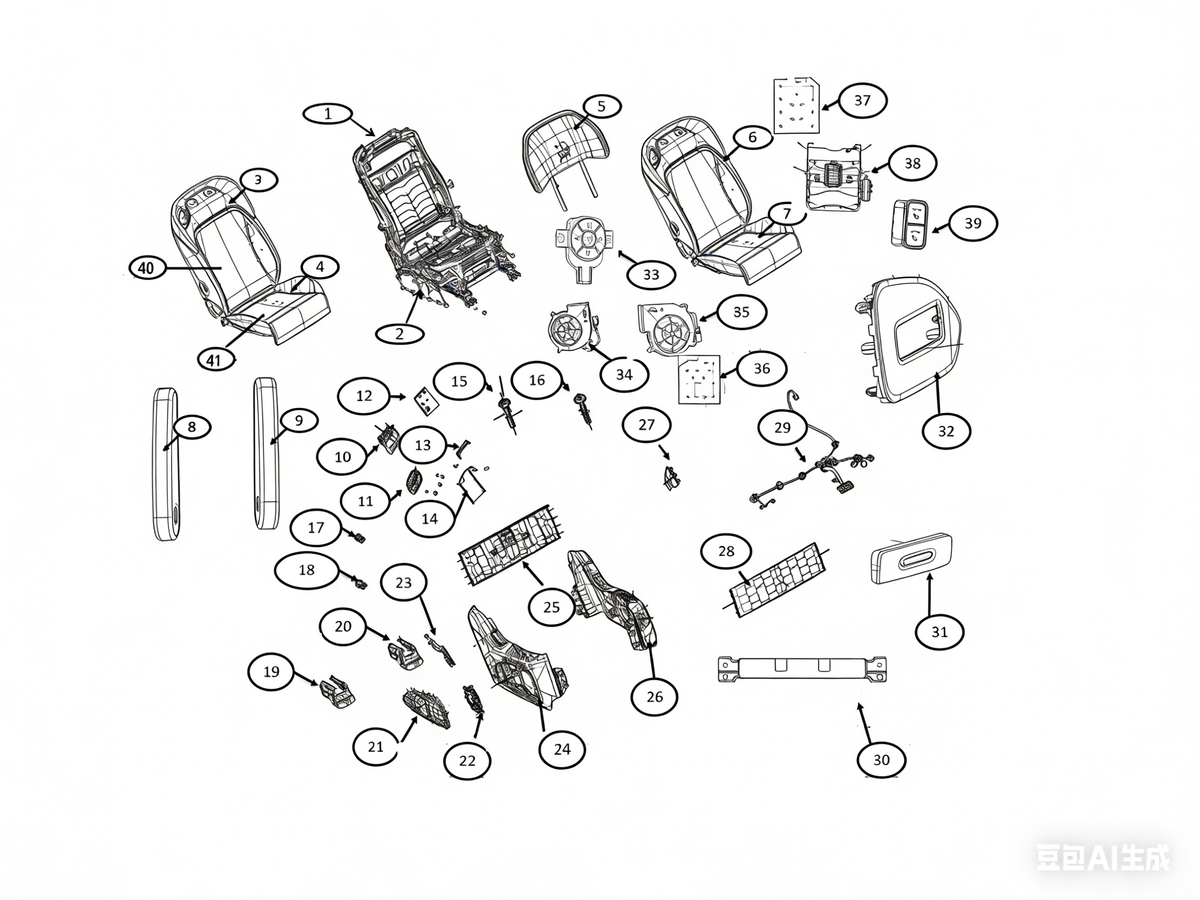

F1N1 - SECOND ROW RIGHT SINGLE SEAT ASSEMBLY
F1N1 - SECOND ROW RIGHT SINGLE SEAT ASSEMBLY
M6M01A15D65B17SH25 > Seat system > Rear single seat module > Second row right single seat assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | LV1 middle row right side backrest frame assembly | F1N1-DL5U1979 | 1 |
| 2 | LV2 middle row seat frame assembly - right | F1N1-DL5U1032 | 1 |
| 3 | Middle Row Seat Back and Cushion Cover Assembly, Right Side, Double Armrests, PVC - 25 Model LV2 | F1N1-DL5U2404 | 1 |
| 4 | Middle Row LV1 Right Seat Cushion Foam Assembly - Fragrance-Type | F1N1-DL5U2298 | 1 |
| 5 | Second row low configuration PIP headrest assembly | F1N1-DL5U0072D99 | 1 |
| 6 | Middle Row Seat Back Cover Assembly, Right Side, Double Armrests, PVC - 25 Model LV1 | F1N1-DL5U40D5D99 | 1 |
| 7 | Middle Row Seat Back and Cushion Cover Assembly, Right Side, Double Armrests, PVC - 25 Model LV1 | F1N1-DL5U40D6D99 | 1 |
| 8 | Right Side of Middle Row LV1/2 Armrest Assembly | F1N1-DL5U8048D99 | 1 |
| 9 | Left Side of Middle Row LV1/2 Armrest Assembly | F1N1-DL5U8047D99 | 1 |
| 10 | Center right seat belt guide base 1 | F1N1-DL5U3034D99 | 1 |
| 11 | right individual seat belt guide trim cover of middle row | F1N1-DL5U3031D99 | 1 |
| 12 | Center right independent seat belt guide base 3 | F1N1-DL5U3036D99 | 1 |
| 13 | Middle row right independent seat belt guide base 2 | F1N1-DL5U3035 | 1 |
| 14 | Middle row right independent seat belt guide base 4 | F1N1-DL5U3037 | 1 |
| 15 | Locking End of Center Row Headrest Guide Sleeve | F1N1-DL5U3001D99 | 1 |
| 16 | Middle Row Headrest Guide Sleeve Free End | F1N1-DL5U3002D99 | 1 |
| 17 | Electric backrest adjustment switch-right | F1N1-DL5U5079 | 1 |
| 18 | Electric seat adjustment switch, middle row right side, L1 (slide rail) | F1N1-DL5U5088 | 1 |
| 19 | Middle row LV1/2 front foot cover body | F1N1-DL5U3417D99 | 1 |
| 20 | Middle row LV1/2 front foot cover body | F1N1-DL5U3417D99 | 1 |
| 21 | LV2 Right Seat Outer Trim Cover Assembly of Middle Row | F1N1-DL5U3458D99 | 1 |
| 22 | Middle row LV3/4 left seat side sliding unlocking buckle assembly | F1N1-DL5U3207D99 | 1 |
| 23 | Middle Row LV2 Right Seat Outer Guard Plate Mating Fastener | F1N1-DL5U3055D99 | 1 |
| 24 | LV2 right seat outer guard assembly of middle row | F1N1-DL5U3482D99 | 1 |
| 25 | Middle row LV1/2 rear cover assembly | F1N1-DL5U3399D99 | 1 |
| 26 | Middle row LV1/2 right seat inner panel assembly | F1N1-DL5U3260D99 | 1 |
| 27 | LV1/2 Right Seat Inner Trim Panel Fastener of Middle Row | F1N1-DL5U3259D99 | 1 |
| 28 | LV1 front guard of middle row | F1N1-DL5U3012D99 | 1 |
| 29 | Middle Row LV1 Right Seat Wiring Harness Assembly - Fragrance-Type | F1N1-DL5U5144 | 1 |
| 30 | Cup holder bracket | F1N1-DL5U3489 | 1 |
| 31 | Front Panel Assembly | F1N1-DL5U3402D99 | 1 |
| 32 | Middle row LV2 right seat inner guard cover assembly | F1N1-DL5U3398D99 | 1 |
| 33 | Electric Lumbar Support Massage Switch Assembly (Right) | F1N1-DL5U5060 | 1 |
| 34 | Backrest fan assembly (middle row right seat cushion fan) | F1N1-DL5U5075 | 1 |
| 35 | Middle row left chair back fan | F1N1-DL5U5019 | 1 |
| 36 | Seat cushion wind bag, right side of middle row, L3 & L4 | F1N1-DL5U8019 | 1 |
| 37 | Backrest air sleeve, middle seat left&right side L3&L4 | F1N1-DL5U5021 | 1 |
| 38 | Lumbar Support Massage - Middle Row Right L2 New Premium | F1N1-DL5U5138 | 1 |
| 39 | Right single seat ventilation heating switch assembly | F1N1-DL4S5014 | 1 |
| 40 | Backrest assembly | F1N1-M6-7100460D-Y1-A1 | 1 |
| 41 | Seat cushion assembly | F1N1-M6-7100460D-Y1-B1 | 1 |
