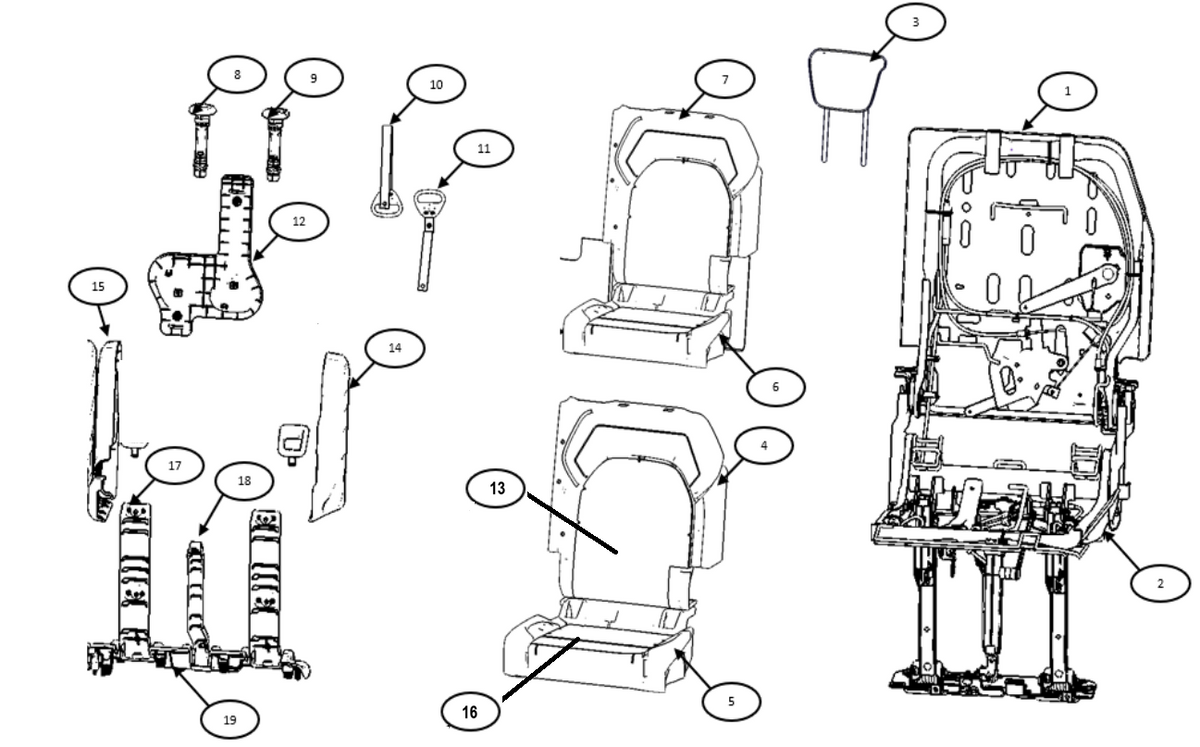

F1N1 - THIRD ROW LEFT SEAT ASSEMBLY

M6M01A15D65B17SH25 > Seat system > three seat module > Third row left seat assembly

Rep.	Designation	Reference	Qte/vehicule
1	40% Backrest Frame Assembly of Third Row	F1N1-DL5U1702	1
2	40% seat cushion skeleton assembly of third row	F1N1-DL5U1704	1
3	Rear side headrest assembly, imitation leather	F1N1-DL5U0032D99	1
4	40% rear backrest foam assembly	F1N1-DL5U2016	1
5	40% rear seat cushion foam assembly	F1N1-DL5U2018	1
6	40% rear seat cushion cover assembly, faux leather -25 models	F1N1-DL5U40D8D99	1
7	40% rear backrest cover assembly, faux leather-25 model	F1N1-DL5U40D7D99	1
8	Front head restraint guide sleeve - free end	F1N1-DL4S3144D99	1
9	Front headrest guide bush-lock end	F1N1-DL4S3143D99	1
10	Backrest Unlock Pull Ring (with Strap and Metal Piece)	F1N1-DL5U8008D99	1
11	Floor lock unlocking pull ring (with tensile belt + iron plate)	F1N1-DL5U8009D99	1
12	60% trim cover	F1N1-DL5U3066D99	1
13	Backrest assembly	F1N1-M6-7300050D-Y1-A1	1
14	40% rear outer panel	F1N1-DL5U3061D99	1
15	40% rear interior guard	F1N1-DL5U3062D99	1
16	Seat cushion assembly	F1N1-M6-7300050D-Y1-B1	1
17	Back row rear bracket cover	F1N1-DL5U3065D99	1
18	Connecting rod head cover of rear row	F1N1-DL5U3063D99	1
19	40% rear foot cover body	F1N1-DL5U3119D99	1
